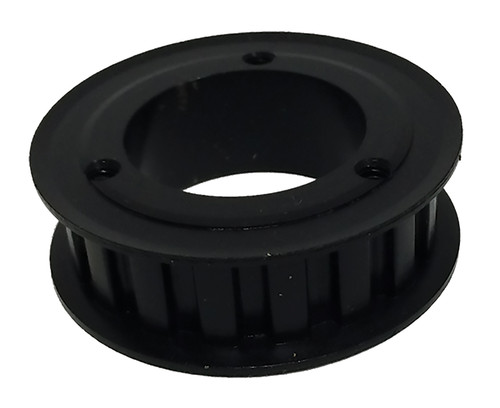

QD32L050, Timing Pulley

QD32L050 - Cast Iron Imperial Pitch Pulleys

QD32L050

Click to Enlarge

QD32L050, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD32L050 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD32L050
Teeth 32
Tooth Style L
For Belt Width (in) 0.5000
Type B1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SDS
Pitch Diameter (in) 3.820
Outside Diameter (in) 3.790
Flange Diameter (in) 4.044
Face Width (in) 0.750
Overall Length (in) 0.750
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.570
Unit System Inch
Bushing SDS
P.D. (mm) 97.00
O.D. (mm) 96.30
MOQ 1
Weight (lb) 1.44
Part Number Cross Reference 32L050SDS, 32L050.SDS, 32L050SDS, 32L050-SDS, 20182047, 32L050, 32L050QD, 32L050-SDS, P32L050 SDS, Q32L050, QD32L050
