QD32L075, Timing Pulley

QD32L075 - Cast Iron Imperial Pitch Pulleys

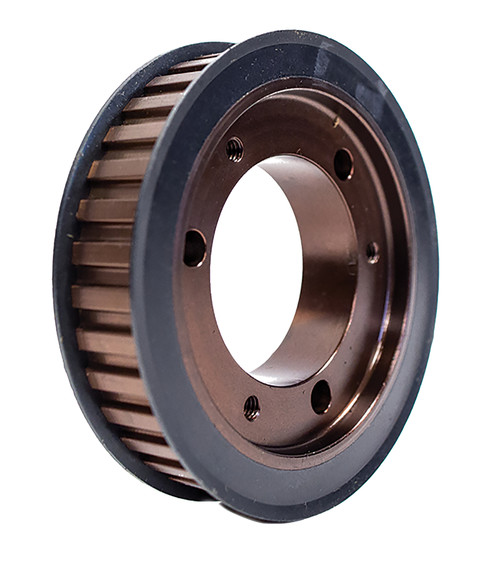

QD32L075

Click to Enlarge

QD32L075, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD32L075 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD32L075
Teeth 32
Tooth Style L
For Belt Width (in) 0.7500
Type B1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SDS
Pitch Diameter (in) 3.820
Outside Diameter (in) 3.790
Flange Diameter (in) 4.044
Face Width (in) 1.000
Overall Length (in) 1.000
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.820
Unit System Inch
Bushing SDS
P.D. (mm) 97.00
O.D. (mm) 96.30
MOQ 1
Weight (lb) 1.86
Part Number Cross Reference 32L075SDS, 32L075.SDS, 32L075SDS, 32L075-SDS, 20182048, 32L075, 32L075QD, 32L075-SDS, P32L075 SDS, Q32L075, QD32L075
