QD32L100, Timing Pulley

QD32L100 - Cast Iron Imperial Pitch Pulleys

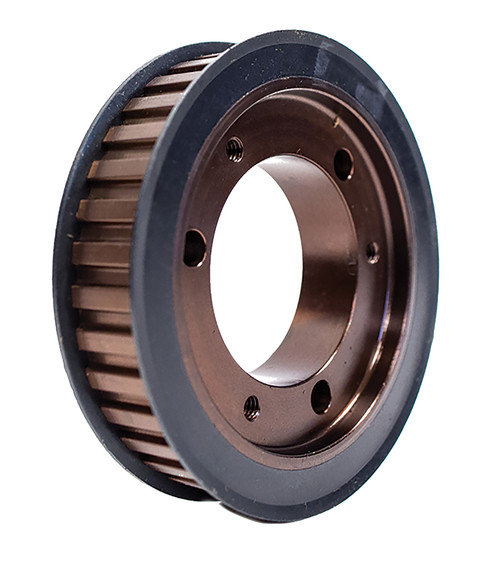

QD32L100

Click to Enlarge

QD32L100, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD32L100 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD32L100
Teeth 32
Tooth Style L
For Belt Width (in) 1.0000
Type E1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SDS
Pitch Diameter (in) 3.820
Outside Diameter (in) 3.790
Flange Diameter (in) 4.044
Face Width (in) 1.250
Overall Length (in) 1.250
Min. Bore (in) 0.500
Pulley Belt Width (in) 1.070
Unit System Inch
Bushing SDS
P.D. (mm) 97.00
O.D. (mm) 96.30
MOQ 1
Weight (lb) 1.91
Part Number Cross Reference 32L100SDS, 32L100.SDS, 32L100SDS, 32L100-SDS, 20182049, 32L100, 32L100QD, 32L100-SDS, P32L100 SDS, Q32L100, QD32L100
