QD32XH200, Timing Pulley

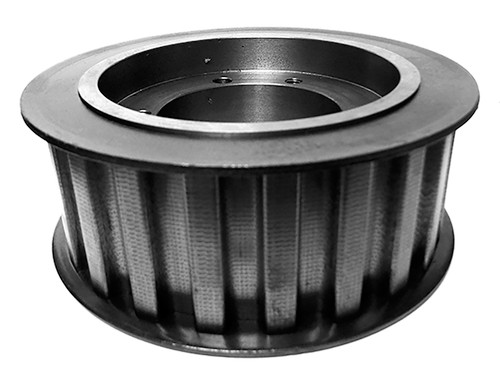

QD32XH200 - Cast Iron Imperial Pitch Pulleys

QD32XH200

QD32XH200 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

QD32XH200, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD32XH200 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD32XH200
Teeth 32
Tooth Style XH
For Belt Width (in) 2.0000
Type D1F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for E Bushing
Pitch Diameter (in) 8.913
Outside Diameter (in) 8.803
Flange Diameter (in) 9.438
Face Width (in) 2.563
Overall Length (in) 3.156
Min. Bore (in) 0.875
Unit System Inch
Bushing E
P.D. (mm) 226.00
O.D. (mm) 223.60
MOQ 1
Weight (lb) 23.31
Part Number Cross Reference 32H200SK, 32XH200E, 32XH200-E, 20182050, 32XH200, 32XH200QD, 32XH200-E, P32XH200 E, 32XH200E, Q32XH200, QD32XH200, QD32XH200
