QD32XH400, Timing Pulley

QD32XH400 - Cast Iron Imperial Pitch Pulleys

QD32XH400

Click to Enlarge

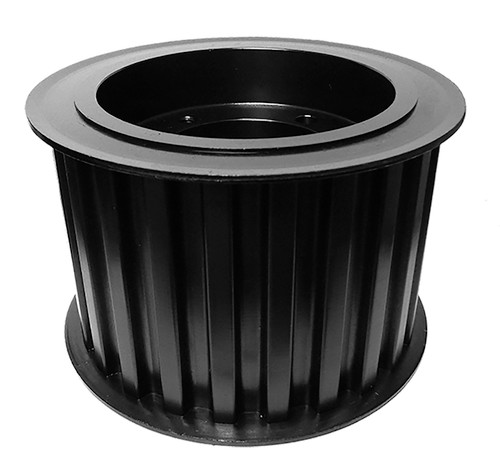

QD32XH400, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD32XH400 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD32XH400
Teeth 32
Tooth Style XH
For Belt Width (in) 4.0000
Type A2F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for E Bushing
Pitch Diameter (in) 8.913
Outside Diameter (in) 8.803
Flange Diameter (in) 9.438
Face Width (in) 4.688
Overall Length (in) 5.156
Min. Bore (in) 0.875
Unit System Inch
Bushing E
P.D. (mm) 226.00
O.D. (mm) 223.60
MOQ 1
Weight (lb) 34.00
Part Number Cross Reference 32XH400E, 32XH400E, 32XH400-E, 20182052, 32XH400, 32XH400QD, 32XH400-E, P32XH400 E, 32XH400E, Q32XH400, QD32XH400, QD32XH400
