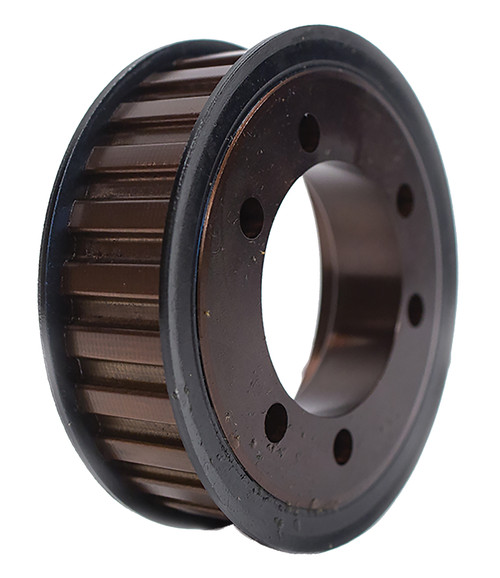

QD33H100, Timing Pulley

QD33H100 - Cast Iron Imperial Pitch Pulleys

QD33H100

Click to Enlarge

QD33H100, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD33H100 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD33H100
Teeth 33
Tooth Style H
For Belt Width (in) 1.0000
Type B1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SK
Pitch Diameter (in) 5.252
Outside Diameter (in) 5.198
Flange Diameter (in) 5.320
Face Width (in) 1.312
Overall Length (in) 1.312
Min. Bore (in) 0.500
Unit System Inch
Bushing SK
P.D. (mm) 133.00
O.D. (mm) 132.00
MOQ 1
Weight (lb) 4.89
Part Number Cross Reference 33H100.SK, 33H100SK, 33H100-SK, 20182053, 33H100, 33H100-SK, P33H100 SK, QD33H100
