QD34-14M-115, Timing Pulley

QD34-14M-115 - Cast Iron Powerhouse®HTD® Pulleys

QD34-14M-115

Click to Enlarge

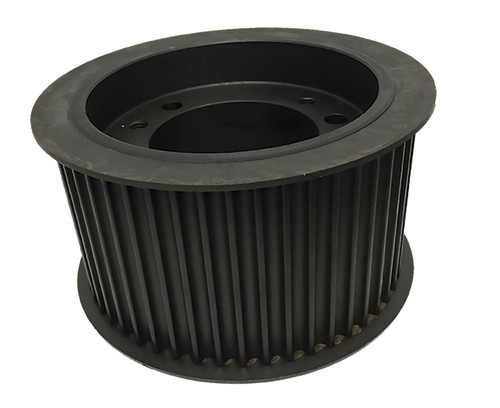

QD34-14M-115, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD34-14M-115 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD34-14M-115
Teeth 34
Tooth Style HTD 14mm
For Belt Width (mm) 115.00
Type A1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for SK Bushing
Pitch Diameter (in) 5.965
Outside Diameter (in) 5.855
Flange Diameter (in) 6.500
Face Width (in) 5.250
Overall Length (in) 5.250
Min. Bore (in) 0.5
Unit System Inch
Bushing SK
P.D. (mm) 152.00
O.D. (mm) 148.70
MOQ 1
Weight (lb) 17.00
Part Number Cross Reference 14M34QD115.SK, QD34-14M-115, 20182315, 110859, P3414M115, P34-14M-115-SK, P34-14M-115-EL, P34-14M-115, P34-14M-115-SK, QD34-14M-115

Comparable to: 14M34QD115.SK, QD34-14M-115, 20182315, 110859, P3414M115, P34-14M-115-SK, P34-14M-115-EL, P34-14M-115, P34-14M-115-SK, QD34-14M-115
