QD34-14M-55, Timing Pulley

QD34-14M-55 - Cast Iron Powerhouse®HTD® Pulleys

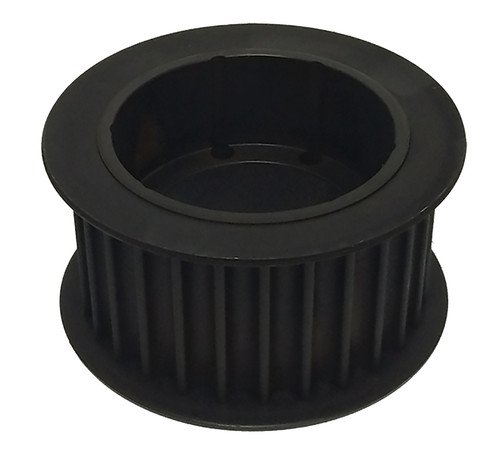

QD34-14M-55

Click to Enlarge

QD34-14M-55, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD34-14M-55 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD34-14M-55
Teeth 34
Tooth Style HTD14mm
For Belt Width (mm) 55.00
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for SK Bushing
Pitch Diameter (in) 5.965
Outside Diameter (in) 5.855
Flange Diameter (in) 6.500
Face Width (in) 2.750
Overall Length (in) 2.750
Min. Bore (in) 0.5
Unit System Metric
Bushing SK
P.D. (mm) 152.00
O.D. (mm) 148.70
MOQ 1
Weight (lb) 10.00
Part Number Cross Reference 14M34QD55.SK, P34-14M-55-SK, 20182287, P34-14M-55-SK HTD SPKT, P3414M55, P34-14M-55-SK, P34-14M-55-SK, P34-14M-55, P34-14M-55-SK, QD34-14M-55, 110809, QD34-14M-55

Comparable to: 14M34QD55.SK, P34-14M-55-SK, 20182287, P34-14M-55-SK HTD SPKT, P3414M55, P34-14M-55-SK, P34-14M-55-SK, P34-14M-55, P34-14M-55-SK, QD34-14M-55, 110809, QD34-14M-55

Documentation

Download Catalog
General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Keyway Standards and Tolerances
Drive Alignment Guide
For custom parts click here
REACH Certification
RoHS Certification
