QD34-14M-85, Timing Pulley

QD34-14M-85 - Cast Iron Powerhouse®HTD® Pulleys

Product Details for QD34-14M-85

Comparable to: 14M34QD85.SK, P34-14M-85-EL, 20182288, 110834, P3414M85, P34-14M-85-SK, P34-14M-85

Click to Enlarge

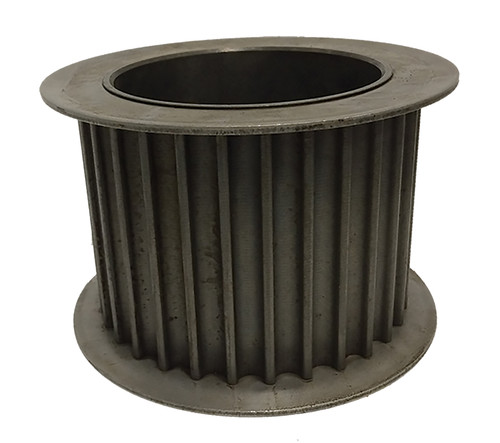

QD34-14M-85, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD34-14M-85 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD34-14M-85
Teeth 34
Tooth Style HTD 14mm
For Belt Width (mm) 85
Type A1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SK
Pitch Diameter (in) 5.965
Outside Diameter (in) 5.858
Flange Diameter (in) 6.130
Face Width (in) 4.000
Overall Length (in) 4.000
Min. Bore (in) 0.500
Unit System Inch
Bushing SK
MOQ 1
Weight (lb) 14.00
Part Number Cross Reference 14M34QD85.SK, P34-14M-85-EL, 20182288, 110834, P3414M85, P34-14M-85-SK, P34-14M-85
