QD34-8M-20, Timing Pulley

QD34-8M-20 - Cast Iron Powerhouse®HTD® Pulleys

Product Details for QD34-8M-20

Comparable to: P34-8M-20-SH, 20182294, 110706, P348M20, P34-8M-20

Click to Enlarge

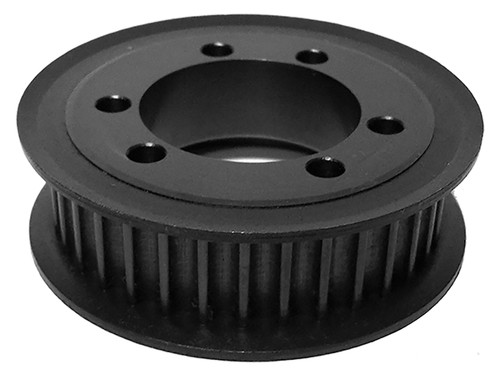

QD34-8M-20, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD34-8M-20 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD34-8M-20
Teeth 34
Tooth Style HTD 8mm
For Belt Width (mm) 20
Type D1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SH
Pitch Diameter (in) 3.409
Outside Diameter (in) 3.355
Flange Diameter (in) 3.819
Face Width (in) 1.125
Overall Length (in) 1.125
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.875
Unit System Inch
Bushing SH
MOQ 1
Weight (lb) 2.00
Part Number Cross Reference P34-8M-20-SH, 20182294, 110706, P348M20, P34-8M-20
