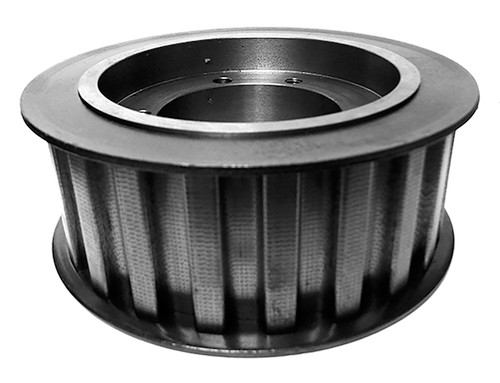

QD34XXH200, Timing Pulley

QD34XXH200 - Cast Iron Imperial Pitch Pulleys

QD34XXH200

Click to Enlarge

QD34XXH200, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD34XXH200 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD34XXH200
Teeth 34
Tooth Style XXH
For Belt Width (in) 2.0000
Type D2F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) F
Pitch Diameter (in) 13.528
Outside Diameter (in) 13.408
Flange Diameter (in) 14.250
Face Width (in) 2.563
Overall Length (in) 2.563
Min. Bore (in) 1.000
Unit System Inch
Bushing F
P.D. (mm) 344.00
O.D. (mm) 340.60
MOQ 1
Weight (lb) 56.00
Part Number Cross Reference 34XXH200F, 34XXH200-F, 20182055, 34XXH200, 34XXH200-F, P34XXH200 F, Q34XXH200, QD34XXH200
