QD35H100, Timing Pulley

QD35H100 - Cast Iron Imperial Pitch Pulleys

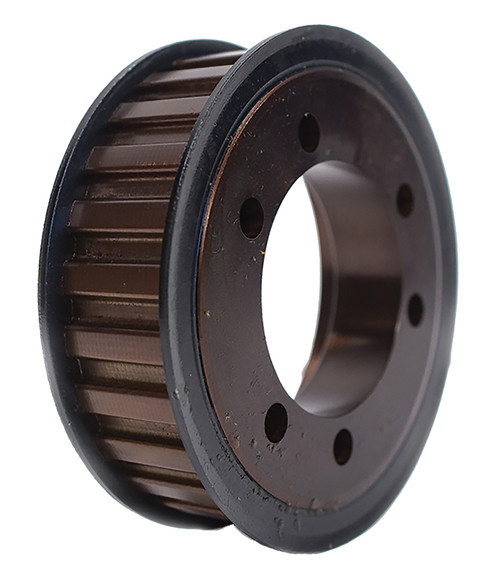

QD35H100

Click to Enlarge

QD35H100, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD35H100 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD35H100
Teeth 35
Tooth Style H
For Belt Width (in) 1.0000
Type B1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SK
Pitch Diameter (in) 5.570
Outside Diameter (in) 5.516
Flange Diameter (in) 5.959
Face Width (in) 1.312
Overall Length (in) 1.312
Min. Bore (in) 0.500
Unit System Inch
Bushing SK
P.D. (mm) 142.00
O.D. (mm) 140.10
MOQ 1
Weight (lb) 5.97
Part Number Cross Reference 35H100.SK, 35H100SK, 35H100-SK, 20182059, 35H100, 35H100-SK, P35H100 SK, QD35H100
