QD38-14M-115, Timing Pulley

QD38-14M-115 - Cast Iron Powerhouse®HTD® Pulleys

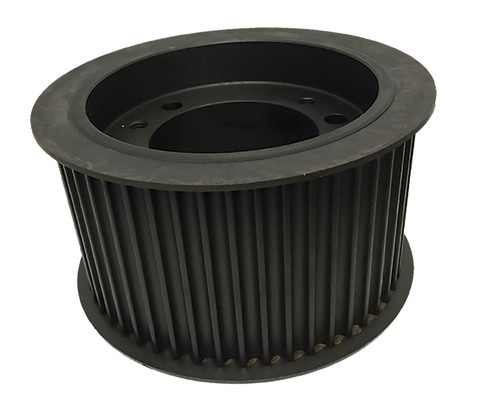

QD38-14M-115

Click to Enlarge

QD38-14M-115, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD38-14M-115 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD38-14M-115
Teeth 38
Tooth Style HTD14mm
For Belt Width (mm) 115.00
Type A1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for SF Bushing
Pitch Diameter (in) 6.667
Outside Diameter (in) 6.557
Flange Diameter (in) 7.160
Face Width (in) 5.250
Overall Length (in) 5.250
Min. Bore (in) 0.5
Unit System Metric
Bushing SF
P.D. (mm) 169.00
O.D. (mm) 166.50
MOQ 1
Weight (lb) 44.40
Part Number Cross Reference 14M38QD115.SF, P38-14M-115-FL, 20182314, P38-14M-115-SF HTD SPKT, P3814M115, P38-14M-115-SF, P38-14M-115-FL, P38-14M-115, P38-14M-115-SF, QD38-14M-115, 110861, QD38-14M-115

Comparable to: 14M38QD115.SF, P38-14M-115-FL, 20182314, P38-14M-115-SF HTD SPKT, P3814M115, P38-14M-115-SF, P38-14M-115-FL, P38-14M-115, P38-14M-115-SF, QD38-14M-115, 110861, QD38-14M-115
