QD38-14M-55, Timing Pulley

QD38-14M-55 - Cast Iron Powerhouse®HTD® Pulleys

Product Details for QD38-14M-55

Comparable to: 14M38QD55.SF, P38-14M-55-SF, 20182318, 110811, P3814M55, P38-14M-55

Click to Enlarge

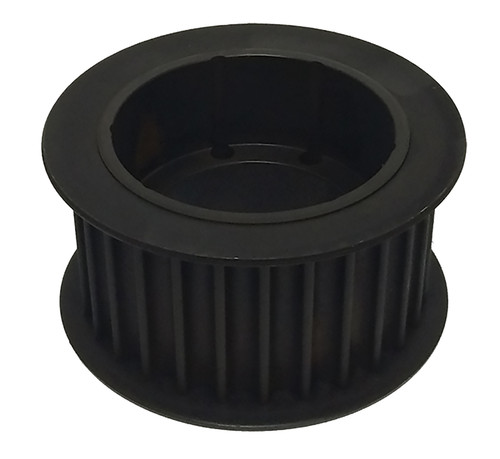

QD38-14M-55, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD38-14M-55 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD38-14M-55
Teeth 38
Tooth Style HTD 14mm
For Belt Width (mm) 55
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SF
Pitch Diameter (in) 6.667
Outside Diameter (in) 6.559
Flange Diameter (in) 7.160
Face Width (in) 2.750
Overall Length (in) 2.750
Min. Bore (in) 0.500
Unit System Inch
Bushing SF
MOQ 1
Weight (lb) 13.00
Part Number Cross Reference 14M38QD55.SF, P38-14M-55-SF, 20182318, 110811, P3814M55, P38-14M-55
