QD38-14M-85, Timing Pulley

QD38-14M-85 - Cast Iron Powerhouse®HTD® Pulleys

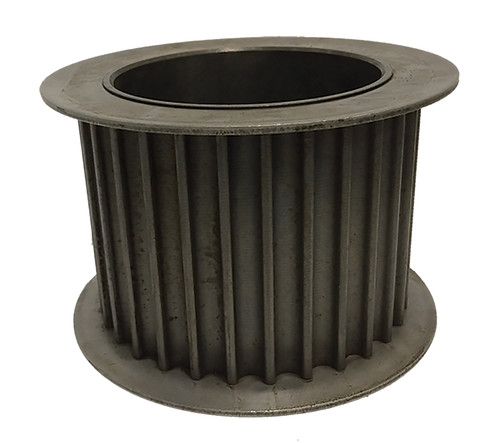

QD38-14M-85

Click to Enlarge

QD38-14M-85, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD38-14M-85 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD38-14M-85
Teeth 38
Tooth Style HTD14mm
For Belt Width (mm) 85.00
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for SF Bushing
Pitch Diameter (in) 6.667
Outside Diameter (in) 6.557
Flange Diameter (in) 7.160
Face Width (in) 4.000
Overall Length (in) 4.000
Min. Bore (in) 0.5
Unit System Metric
Bushing SF
P.D. (mm) 169.00
O.D. (mm) 166.50
MOQ 1
Weight (lb) 18.00
Part Number Cross Reference 14M38QD85.SK, P38-14M-85-SF, 20182319, P38-14M-85-SF HTD SPKT, P3814M85, P38-14M-85-SF, P38-14M-85-SF, P38-14M-85, P38-14M-85-SF, QD38-14M-85, 110836, QD38-14M-85

Comparable to: 14M38QD85.SK, P38-14M-85-SF, 20182319, P38-14M-85-SF HTD SPKT, P3814M85, P38-14M-85-SF, P38-14M-85-SF, P38-14M-85, P38-14M-85-SF, QD38-14M-85, 110836, QD38-14M-85

Documentation

Download Catalog
General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Keyway Standards and Tolerances
Drive Alignment Guide
For custom parts click here
REACH Certification
RoHS Certification
