QD40-5M-15, Timing Pulley

QD40-5M-15

Click to Enlarge

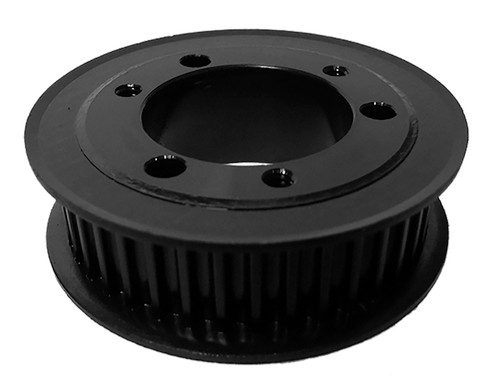

QD40-5M-15, Timing Pulley, Steel, Black Oxide,

Learn more about QD40-5M-15 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	QD40-5M-15
Teeth	40
Tooth Style	HTD5mm
For Belt Width (mm)	15.00
Type	E1F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for JA Bushing
Pitch Diameter (in)	2.506
Outside Diameter (in)	2.461
Flange Diameter (in)	2.750
Face Width (in)	0.840
Overall Length (in)	0.840
Hub Diameter (in)	0.635
Min. Bore (in)	0.5
Pulley Belt Width (in)	0.650
Unit System	Metric
Bushing	JA
P.D. (mm)	64.00
O.D. (mm)	62.50
MOQ	1
Weight (lb)	0.75
Part Number Cross Reference	P40-5M-15-JA, P405M15-JA, 5M40QD15.JA, P40-5M-15-JA, 20182339, P40-5M-15-JA HTD SPKT, P405M15, P40-5M-15-JA, P40-5M-15, P405M15JA, 6497K84, QD40-5M-15, 114642, QD40-5M-15
