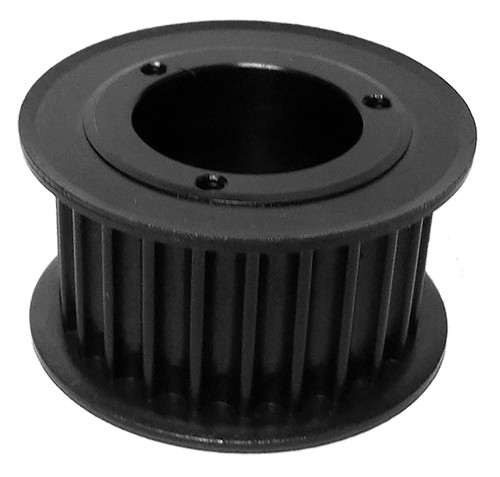

QD40-8M-30, Timing Pulley

QD40-8M-30

Click to Enlarge

QD40-8M-30, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD40-8M-30 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	QD40-8M-30
Teeth	40
Tooth Style	HTD8mm
For Belt Width (mm)	30.00
Type	A1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for SH Bushing
Pitch Diameter (in)	4.010
Outside Diameter (in)	3.958
Flange Diameter (in)	4.331
Face Width (in)	1.500
Overall Length (in)	1.500
Min. Bore (in)	0.5
Pulley Belt Width (in)	1.250
Unit System	Metric
Bushing	SH
P.D. (mm)	102.00
O.D. (mm)	100.50
MOQ	1
Weight (lb)	2.73
Part Number Cross Reference	P408M30-SH, 8M40QD30.SH, B408M30SH, P40-8M-30-SH, 20182342, P40-8M-30-SH HTD SPKT, P408M30, P40-8M-30-SH, P40-8M-30-SH, P40-8M-30, P408M30SH, 6497K22, 2UWP1, P40-8M-30-SH, QD40-8M-30, 110729, QD40-8M-30
