QD40H100, Timing Pulley

QD40H100 - Cast Iron Imperial Pitch Pulleys

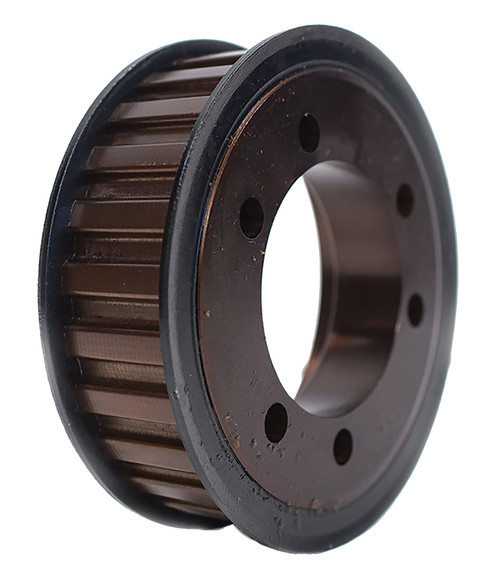

QD40H100

Click to Enlarge

QD40H100, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD40H100 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD40H100
Teeth 40
Tooth Style H
For Belt Width (in) 1.0000
Type B1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SK
Pitch Diameter (in) 6.366
Outside Diameter (in) 6.312
Flange Diameter (in) 6.600
Face Width (in) 1.312
Overall Length (in) 1.312
Min. Bore (in) 0.500
Pulley Belt Width (in) 1.062
Unit System Inch
Bushing SK
P.D. (mm) 162.00
O.D. (mm) 160.30
MOQ 1
Weight (lb) 8.35
Part Number Cross Reference 40H100SK, 40H100.SK, 40H100SK, 40H100-SK, 20182076, 40H100, 40H100QD, 40H100-SK, P40H100 SK, Q40H100, QD40H100
