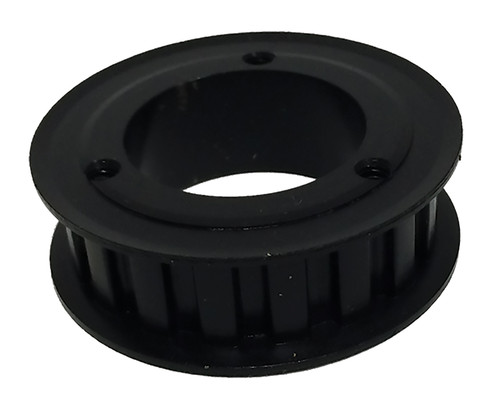

QD40L050, Timing Pulley

QD40L050 - Cast Iron Imperial Pitch Pulleys

QD40L050

Click to Enlarge

QD40L050, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD40L050 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD40L050
Teeth 40
Tooth Style L
For Belt Width (in) 0.5000
Type B1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SDS
Pitch Diameter (in) 4.775
Outside Diameter (in) 4.745
Flange Diameter (in) 5.000
Face Width (in) 0.750
Overall Length (in) 0.750
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.570
Unit System Inch
Bushing SDS
P.D. (mm) 121.00
O.D. (mm) 120.50
MOQ 1
Weight (lb) 2.71
Part Number Cross Reference 40L050SDS, 40L050.SDS, 40L050SDS, 40L050-SDS, 20182080, 40L050, 40L050QD, 40L050-SDS, P40L050 SDS, Q40L050, QD40L050
