QD40L100, Timing Pulley

QD40L100 - Cast Iron Imperial Pitch Pulleys

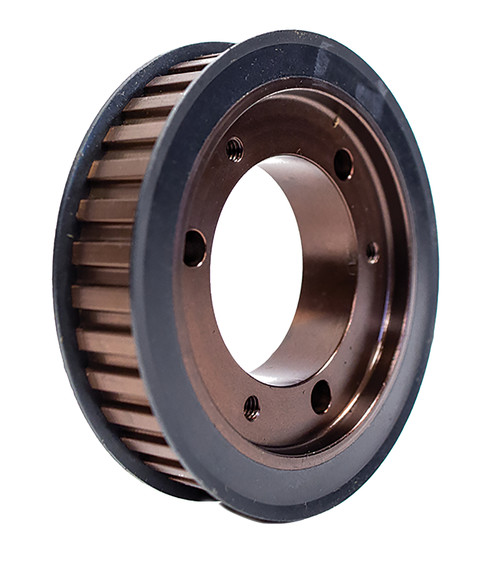

QD40L100

Click to Enlarge

QD40L100, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD40L100 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD40L100
Teeth 40
Tooth Style L
For Belt Width (in) 1.0000
Type B1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SDS
Pitch Diameter (in) 4.775
Outside Diameter (in) 4.745
Flange Diameter (in) 5.000
Face Width (in) 1.250
Overall Length (in) 1.250
Min. Bore (in) 0.500
Pulley Belt Width (in) 1.070
Unit System Inch
Bushing SDS
P.D. (mm) 121.00
O.D. (mm) 120.50
MOQ 1
Weight (lb) 3.52
Part Number Cross Reference  40L100SDS , 40L100.SDS, 40L100SDS, 40L100-SDS, 20182082, 40L100, 40L100QD, 40L100-SDS, P40L100 SDS, Q40L100, QD40L100

Related Products

Comparable to:  40L100SDS , 40L100.SDS, 40L100SDS, 40L100-SDS, 20182082, 40L100, 40L100QD, 40L100-SDS, P40L100 SDS, Q40L100, QD40L100
