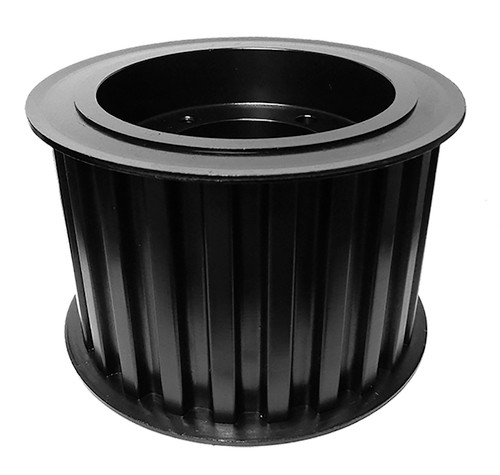

QD40XH400, Timing Pulley

QD40XH400

Click to Enlarge

QD40XH400, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD40XH400 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	QD40XH400
Teeth	40
Tooth Style	XH
For Belt Width (in)	4.0000
Type	D2F
Material	Cast Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for F Bushing
Pitch Diameter (in)	11.141
Outside Diameter (in)	11.031
Flange Diameter (in)	11.688
Face Width (in)	4.688
Overall Length (in)	5.156
Min. Bore (in)	1
Unit System	Inch
Bushing	F
P.D. (mm)	283.00
O.D. (mm)	280.20
MOQ	1
Weight (lb)	52.00
Part Number Cross Reference	40XH400F, 40XH400F, 40XH400-F, 20182085, 40XH400, 40XH400QD, 40XH400-F, P40XH400 F, 40XH400F, Q40XH400, QD40XH400, QD40XH400
