QD40XXH400, Timing Pulley

QD40XXH400

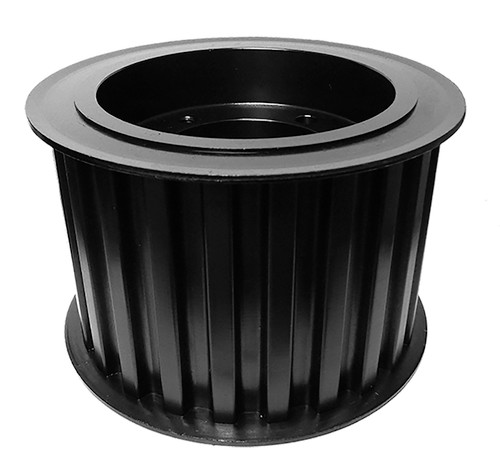

Click to Enlarge

QD40XXH400, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD40XXH400 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	QD40XXH400
Teeth	40
Tooth Style	XXH
For Belt Width (in)	4.0000
Type	D3F
Material	Cast Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for J Bushing
Pitch Diameter (in)	15.915
Outside Diameter (in)	15.795
Flange Diameter (in)	16.625
Face Width (in)	2.625
Overall Length (in)	3.156
Min. Bore (in)	1.5
Unit System	Inch
Bushing	J
P.D. (mm)	404.00
O.D. (mm)	401.20
MOQ	1
Weight (lb)	94.00
Part Number Cross Reference	40XXH400J, 40XXH400J, 40XXH400-J, 20182088, 40XXH400, 60XXH500QD, 40XXH400-J, P40XXH400 J, 40XXH400J, Q40XXH400, QD40XXH400, QD40XXH400
