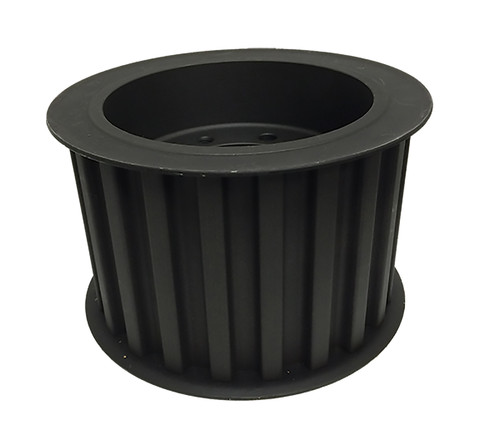

QD40XXH500, Timing Pulley

QD40XXH500, 40XXH500-J, 20182089, 40XXH500

Product Details for QD40XXH500

Comparable to: QD40XXH500, 40XXH500-J, 20182089, 40XXH5

QD40XXH500, Timing Pulley, Powerhouse Timing, J Bushing, Cast Iron

Learn more about QD40XXH500 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD40XXH500
Teeth 40
Tooth Style XXH
For Belt Width (in) 5.000
Type D3F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) J
Pitch Diameter (in) 15.915
Outside Diameter (in) 15.795
Flange Diameter (in) 16.625
Face Width (in) 2.625
Overall Length (in) 3.969
Min. Bore (in) 1.500
Unit System Inch
Bushing J
Max. Bore (in) 4.625
Weight (lb) 107.00
Part Number Cross Reference QD40XXH500, 40XXH500-J, 20182089, 40XXH5
