QD44-8M-85, Timing Pulley

QD44-8M-85 - Cast Iron Powerhouse®HTD® Pulleys

Product Details for QD44-8M-85

Comparable to: 8M44QD85.SD, P44-8M-85-SFL, 20182361, 110764, P448M85, P44-8M-85-SD, P44-8M-85

Click to Enlarge

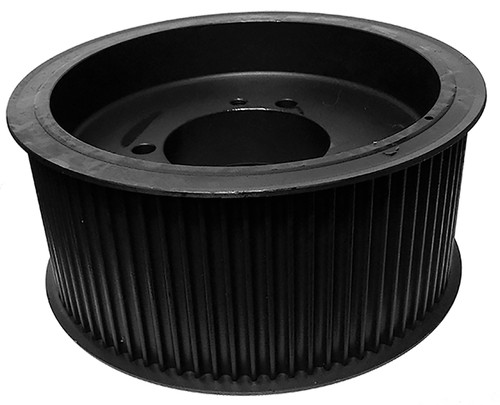

QD44-8M-85, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD44-8M-85 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD44-8M-85
Teeth 44
Tooth Style HTD 8mm
For Belt Width (mm) 85
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SD
Pitch Diameter (in) 4.411
Outside Diameter (in) 4.357
Flange Diameter (in) 4.764
Face Width (in) 3.750
Overall Length (in) 3.750
Min. Bore (in) 0.500
Pulley Belt Width (in) 3.500
Unit System Inch
Bushing SD
MOQ 1
Weight (lb) 6.30
Part Number Cross Reference 8M44QD85.SD, P44-8M-85-SFL, 20182361, 110764, P448M85, P44-8M-85-SD, P44-8M-85
