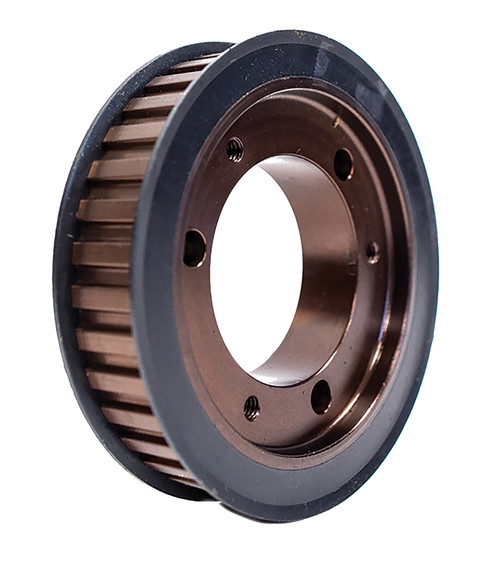

QD44L075, Timing Pulley

QD44L075 - Cast Iron Imperial Pitch Pulleys

QD44L075

Click to Enlarge

QD44L075, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD44L075 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD44L075
Teeth 44
Tooth Style L
For Belt Width (in) 0.7500
Type B1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SDS
Pitch Diameter (in) 5.252
Outside Diameter (in) 5.222
Flange Diameter (in) 5.474
Face Width (in) 1.000
Overall Length (in) 1.000
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.820
Unit System Inch
Bushing SDS
P.D. (mm) 133.00
O.D. (mm) 132.60
MOQ 1
Weight (lb) 4.26
Part Number Cross Reference 44L075SDS, 44L075.SDS, 44L075SDS, 44L075-SDS, 20182100, 44L075, 44L075QD, 44L075-SDS, P40L075 SDS, Q44L075, QD44L075
