QD48-14M-40, Timing Pulley

QD48-14M-40 - Cast Iron Powerhouse®HTD® Pulleys

Product Details for QD48-14M-40

Comparable to: 14M48QD85.E, P48-14M-40-E, 20182365, 110789, P4814M40, P48-14M-40

Click to Enlarge

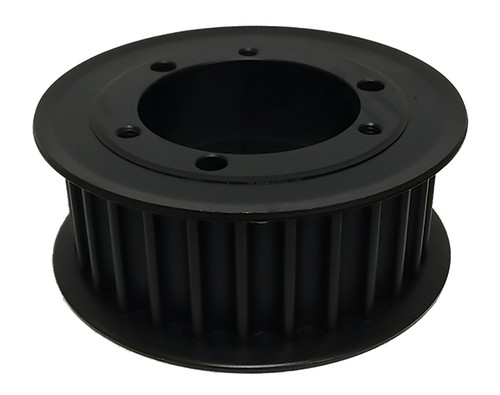

QD48-14M-40, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD48-14M-40 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD48-14M-40
Teeth 48
Tooth Style HTD 14mm
For Belt Width (mm) 40
Type D1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) E
Pitch Diameter (in) 8.421
Outside Diameter (in) 8.311
Flange Diameter (in) 8.940
Face Width (in) 2.125
Overall Length (in) 2.125
Min. Bore (in) 0.875
Unit System Inch
Bushing E
MOQ 1
Weight (lb) 20.00
Part Number Cross Reference 14M48QD85.E, P48-14M-40-E, 20182365, 110789, P4814M40, P48-14M-40
