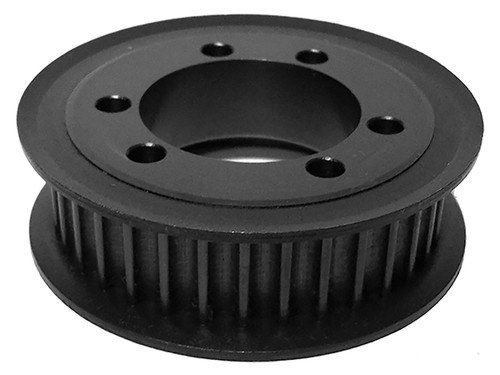

QD48-8M-20, Timing Pulley

QD48-8M-20 - Cast Iron Powerhouse®HTD® Pulleys

QD48-8M-20

Click to Enlarge

QD48-8M-20, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD48-8M-20 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD48-8M-20
Teeth 48
Tooth Style HTD8mm
For Belt Width (mm) 20.00
Type C1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for SDS Bushing
Pitch Diameter (in) 4.812
Outside Diameter (in) 4.760
Flange Diameter (in) 5.157
Face Width (in) 1.125
Overall Length (in) 1.125
Min. Bore (in) 0.5
Pulley Belt Width (in) 0.875
Unit System Metric
Bushing SDS
P.D. (mm) 122.00
O.D. (mm) 120.90
MOQ 1
Weight (lb) 3.22
Part Number Cross Reference P48M20-SDS, 8M48QD20.SDS, B48M20SDS, P48-8M-20-SDS, 20182373, P48-8M-20-SDS HTD SPKT, P488M20, P48-8M-20-SDS, P48-8M-20-SDS, P48-8M-20, P48M20SDS, 6497K122, 3PEC7, P48-8M-20-SDS, QD48-8M-20, 110711, QD48-8M-20

Comparable to: P48M20-SDS, 8M48QD20.SDS, B48M20SDS, P48-8M-20-SDS, 20182373, P48-8M-20-SDS HTD SPKT, P488M20, P48-8M-20-SDS, P48-8M-20-SDS, P48-8M-20, P48M20SDS, 6497K122, 3PEC7, P48-8M-20-SDS, QD48-8M-20, 110711, QD48-8M-20

Documentation

Download Catalog
General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Keyway Standards and Tolerances
Drive Alignment Guide
