QD52-14M-40, Timing Pulley

QD52-14M-40

Click to Enlarge

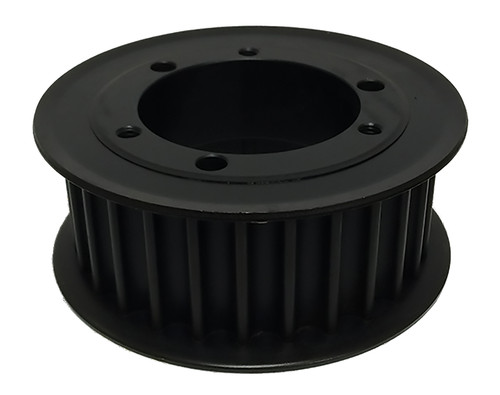

QD52-14M-40, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD52-14M-40 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	QD52-14M-40
Teeth	52
Tooth Style	HTD14mm
For Belt Width (mm)	40.00
Type	D1F
Material	Cast Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for E Bushing
Pitch Diameter (in)	9.123
Outside Diameter (in)	9.013
Flange Diameter (in)	9.690
Face Width (in)	2.125
Overall Length (in)	2.125
Min. Bore (in)	0.875
Unit System	Metric
Bushing	E
P.D. (mm)	232.00
O.D. (mm)	228.90
MOQ	1
Weight (lb)	24.00
Part Number Cross Reference	14M52QD85.E, P52-14M-40-E, 20182380, P52-14M-40-E HTD SPKT, P5214M40, P52-14M-40-E, P52-14M-40-E, P52-14M-40, P52-14M-40-E, QD52-14M-40, 110790, QD52-14M-40
