QD52-14M-55, Timing Pulley

QD52-14M-55

Click to Enlarge

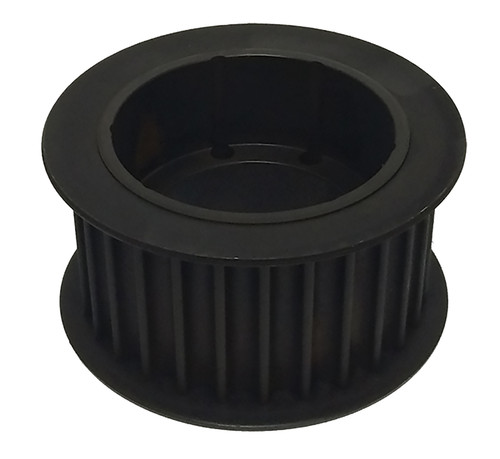

QD52-14M-55, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD52-14M-55 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	QD52-14M-55
Teeth	52
Tooth Style	HTD14mm
For Belt Width (mm)	55.00
Type	D1F
Material	Cast Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for E Bushing
Pitch Diameter (in)	9.123
Outside Diameter (in)	9.013
Flange Diameter (in)	9.690
Face Width (in)	2.750
Overall Length (in)	2.750
Min. Bore (in)	0.875
Unit System	Metric
Bushing	E
P.D. (mm)	232.00
O.D. (mm)	228.90
MOQ	1
Weight (lb)	27.00
Part Number Cross Reference	14M52QD55.E, P52-14M-55-E, 20182381, P52-14M-55-E HTD SPKT, P5214M55, P52-14M-55-E, P52-14M-55-E, P52-14M-55, P52-14M-55-E, QD52-14M-55, 110815, QD52-14M-55
