QD52-14M-85, Timing Pulley

QD52-14M-85 - Cast Iron Powerhouse®HTD® Pulleys

Product Details for QD52-14M-85

Comparable to: 14M52QD85.E, P52-14M-85-E, 20182382, 110840, P5214M85, P52-14M-85

Click to Enlarge

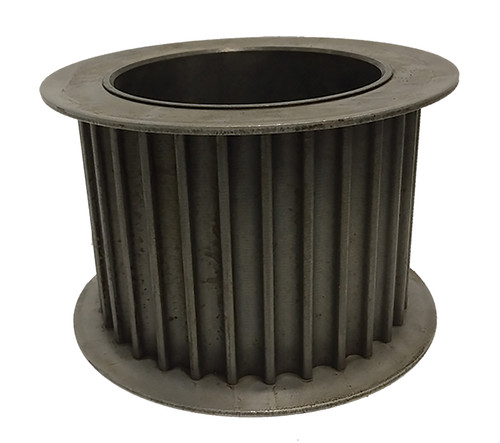

QD52-14M-85, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD52-14M-85 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD52-14M-85
Teeth 52
Tooth Style HTD 14mm
For Belt Width (mm) 85
Type A1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) E
Pitch Diameter (in) 9.123
Outside Diameter (in) 9.013
Flange Diameter (in) 9.690
Face Width (in) 4.000
Overall Length (in) 4.000
Min. Bore (in) 0.875
Unit System Inch
Bushing E
MOQ 1
Weight (lb) 32.00
Part Number Cross Reference 14M52QD85.E, P52-14M-85-E, 20182382, 110840, P5214M85, P52-14M-85
