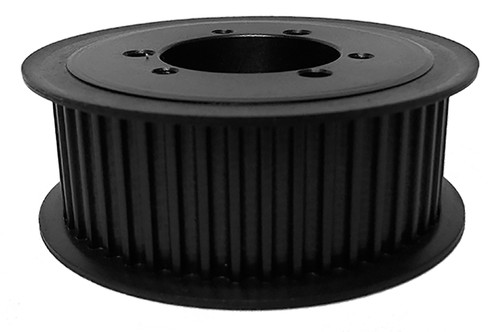

QD56-5M-25, Timing Pulley

QD56-5M-25

Click to Enlarge

QD56-5M-25, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD56-5M-25 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	QD56-5M-25
Teeth	56
Tooth Style	HTD5mm
For Belt Width (mm)	25.00
Type	D1F
Material	Ductile Iron
Finish	Black Oxide
Bore Type	QD
Bore Description	Bored for SH Bushing
Pitch Diameter (in)	3.509
Outside Diameter (in)	3.464
Flange Diameter (in)	3.800
Face Width (in)	1.230
Overall Length (in)	1.230
Min. Bore (in)	0.5
Pulley Belt Width (in)	1.040
Unit System	Metric
Bushing	SH
P.D. (mm)	89.00
O.D. (mm)	88.00
MOQ	1
Weight (lb)	1.60
Part Number Cross Reference	P56-5M-25-SH, P565M25-SH, 5M52QD25.SH, P56-5M-25-SH, 20182401, P56-5M-25-SH HTD SPKT, P565M25, P56-5M-25-SH, P56-5M-25, P565M25SH, QD56-5M-25, 114660, QD56-5M-25
