QD60-14M-115, Timing Pulley

QD60-14M-115

Click to Enlarge

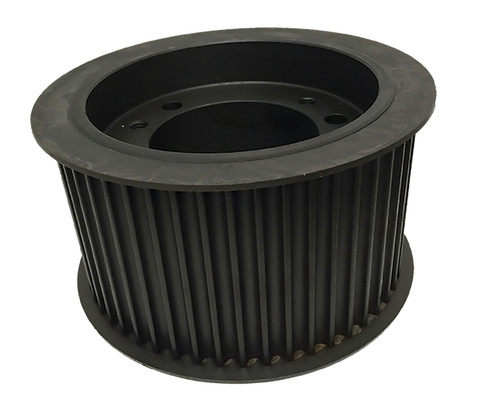

QD60-14M-115, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD60-14M-115 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	QD60-14M-115
Teeth	60
Tooth Style	HTD14mm
For Belt Width (mm)	115.00
Type	A1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for F Bushing
Pitch Diameter (in)	10.527
Outside Diameter (in)	10.417
Flange Diameter (in)	11.060
Face Width (in)	5.250
Overall Length (in)	5.250
Min. Bore (in)	1
Unit System	Metric
Bushing	F
P.D. (mm)	267.00
O.D. (mm)	264.60
MOQ	1
Weight (lb)	60.00
Part Number Cross Reference	14M60QD115.F, P60-14M-115-F, 20182407, P60-14M-115-F HTD SPKT, P6014M115, P60-14M-115-F, P60-14M-115-F, P60-14M-115, P60-14M-115-F, QD60-14M-115, 110867, QD60-14M-115
