QD60-14M-170, Timing Pulley

QD60-14M-170 - Cast Iron Powerhouse®HTD® Pulleys

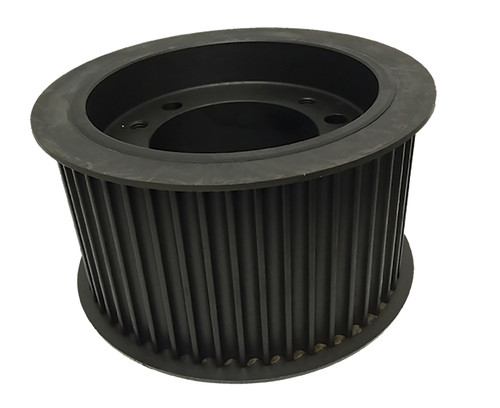

QD60-14M-170

Click to Enlarge

QD60-14M-170, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD60-14M-170 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD60-14M-170
Teeth 60
Tooth Style HTD14mm
For Belt Width (mm) 170.00
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for J Bushing
Pitch Diameter (in) 10.527
Outside Diameter (in) 10.417
Flange Diameter (in) 11.060
Face Width (in) 7.375
Overall Length (in) 7.375
Min. Bore (in) 1.5
Unit System Metric
Bushing J
P.D. (mm) 267.00
O.D. (mm) 264.60
MOQ 1
Weight (lb) 75.00
Part Number Cross Reference 14M60QD170.J, P60-14M-170-J, 20182408, P60-14M-170-J HTD SPKT, P6014M170, P60-14M-170-J, P60-14M-115-F, P60-14M-170, P60-14M-170-J, QD60-14M-170, 110887, QD60-14M-170

Comparable to: 14M60QD170.J, P60-14M-170-J, 20182408, P60-14M-170-J HTD SPKT, P6014M170, P60-14M-170-J, P60-14M-115-F, P60-14M-170, P60-14M-170-J, QD60-14M-170, 110887, QD60-14M-170
