QD60-14M-85, Timing Pulley

QD60-14M-85 - Cast Iron Powerhouse®HTD® Pulleys

Product Details for QD60-14M-85

Comparable to: 14M60QD85.F, P60-14M-85-F, 20182411, 110842, P6014M85, P60-14M-85

Click to Enlarge

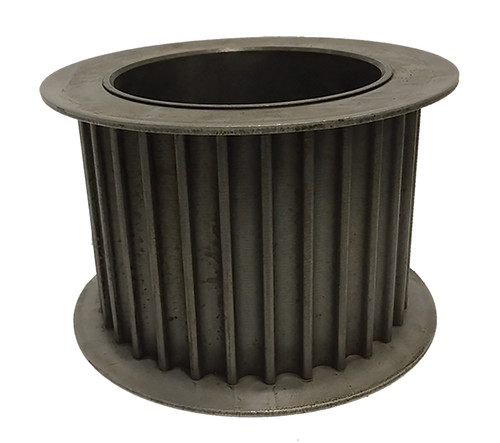

QD60-14M-85, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD60-14M-85 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD60-14M-85
Teeth 60
Tooth Style HTD 14mm
For Belt Width (mm) 85
Type D1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) F
Pitch Diameter (in) 10.527
Outside Diameter (in) 10.417
Flange Diameter (in) 11.060
Face Width (in) 4.000
Overall Length (in) 4.000
Min. Bore (in) 1.000
Unit System Inch
Bushing F
MOQ 1
Weight (lb) 52.45
Part Number Cross Reference 14M60QD85.F, P60-14M-85-F, 20182411, 110842, P6014M85, P60-14M-85
