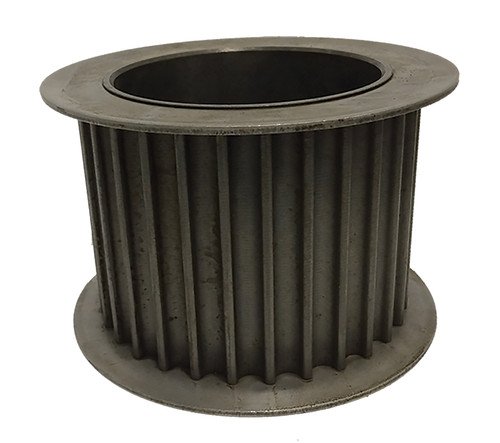

QD64-14M-85, Timing Pulley

QD64-14M-85

Click to Enlarge

QD64-14M-85, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD64-14M-85 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	QD64-14M-85
Teeth	64
Tooth Style	HTD14mm
For Belt Width (mm)	85.00
Type	D1F
Material	Cast Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for F Bushing
Pitch Diameter (in)	11.229
Outside Diameter (in)	11.119
Flange Diameter (in)	11.750
Face Width (in)	4.000
Overall Length (in)	4.000
Min. Bore (in)	1
Unit System	Metric
Bushing	F
P.D. (mm)	285.00
O.D. (mm)	282.40
MOQ	1
Weight (lb)	62.00
Part Number Cross Reference	14M64QD85.F, P64-14M-85-F, 20182423, P64-14M-85-F HTD SPKT, P6414M85, P64-14M-85-F, P64-14M-85-F, P64-14M-85, P64-14M-85-F, QD64-14M-85, 110843, QD64-14M-85
