QD68-14M-40, Timing Pulley

QD68-14M-40 - Cast Iron Powerhouse®HTD® Pulleys

Product Details for QD68-14M-40

Comparable to: 14M68QD85.E, P68-14M-40-E, 20182438, 110794, P6814M40, P68-14M-40

Click to Enlarge

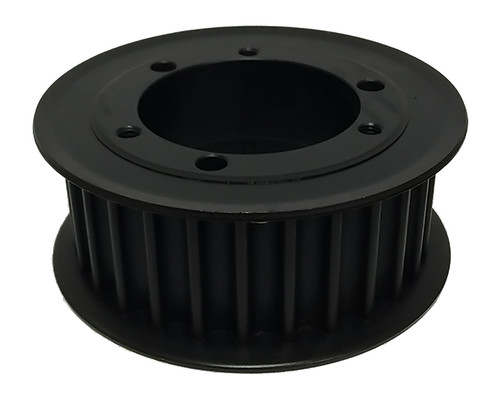

QD68-14M-40, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD68-14M-40 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD68-14M-40
Teeth 68
Tooth Style HTD 14mm
For Belt Width (mm) 40
Type D2F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) E
Pitch Diameter (in) 11.930
Outside Diameter (in) 11.820
Flange Diameter (in) 12.500
Face Width (in) 2.125
Overall Length (in) 2.125
Min. Bore (in) 0.875
Unit System Inch
Bushing E
MOQ 1
Weight (lb) 32.00
Part Number Cross Reference 14M68QD85.E, P68-14M-40-E, 20182438, 110794, P6814M40, P68-14M-40
