QD68-5M-15, Timing Pulley

QD68-5M-15 - Cast Iron Powerhouse®HTD® Pulleys

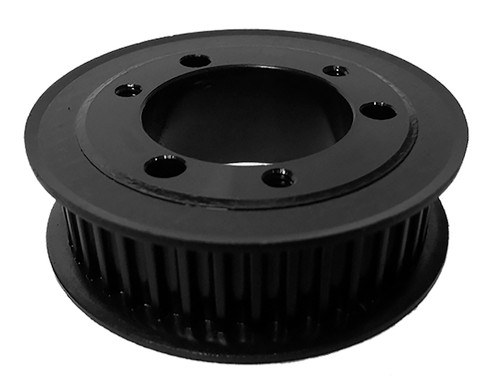

QD68-5M-15

Click to Enlarge

QD68-5M-15, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD68-5M-15 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD68-5M-15
Teeth 68
Tooth Style HTD5mm
For Belt Width (mm) 15.00
Type C1F
Material Ductile Iron
Finish Black Oxide
Bore Type QD
Bore Description Bored for SDS Bushing
Pitch Diameter (in) 4.261
Outside Diameter (in) 4.216
Flange Diameter (in) 4.520
Face Width (in) 0.840
Overall Length (in) 0.840
Hub Diameter (in) 0.442
Min. Bore (in) 0.5
Pulley Belt Width (in) 0.650
Unit System Metric
Bushing SDS
P.D. (mm) 108.00
O.D. (mm) 107.10
MOQ 1
Weight (lb) 2.10
Part Number Cross Reference P68-5M-15-SDS, P685M15-SDS, 5M68QD15.SH, P68-5M-15-SDS, 20182446, P68-5M-15-SDS HTD SPKT, P685M15, P68-5M-15-SDS, P68-5M-15, P685M15SDS, QD68-5M-15, 114649, QD68-5M-15

Comparable to: P68-5M-15-SDS, P685M15-SDS, 5M68QD15.SH, P68-5M-15-SDS, 20182446, P68-5M-15-SDS HTD SPKT, P685M15, P68-5M-15-SDS, P68-5M-15, P685M15SDS, QD68-5M-15, 114649, QD68-5M-15

Documentation

Download Catalog
General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Keyway Standards and Tolerances
Drive Alignment Guide
For custom parts click here
REACH Certification
RoHS Certification
