QD72-14M-170, Timing Pulley

QD72-14M-170 - Cast Iron Powerhouse®HTD® Pulleys

Product Details for QD72-14M-170

Comparable to: 14M72QD170.J, P72-14M-170-J, 20182449, 110890, P7214M170, P72-14M-170

Click to Enlarge

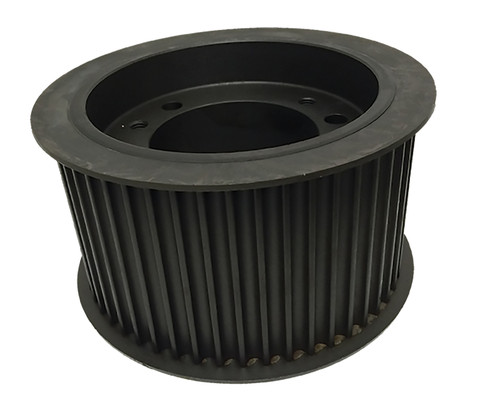

QD72-14M-170, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD72-14M-170 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD72-14M-170
Teeth 72
Tooth Style HTD 14mm
For Belt Width (mm) 170
Type A1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) J
Pitch Diameter (in) 12.632
Outside Diameter (in) 12.522
Flange Diameter (in) 13.190
Face Width (in) 7.375
Overall Length (in) 7.375
Min. Bore (in) 1.500
Unit System Inch
Bushing J
MOQ 1
Weight (lb) 115.00
Part Number Cross Reference 14M72QD170.J, P72-14M-170-J, 20182449, 110890, P7214M170, P72-14M-170
