QD72-8M-20, Timing Pulley

QD72-8M-20 - Cast Iron Powerhouse®HTD® Pulleys

Product Details for QD72-8M-20

Comparable to: 8M72QD20.SDS, P72-8M-20-SDS, 20182460, 110714, P728M20, P72-8M-20

Click to Enlarge

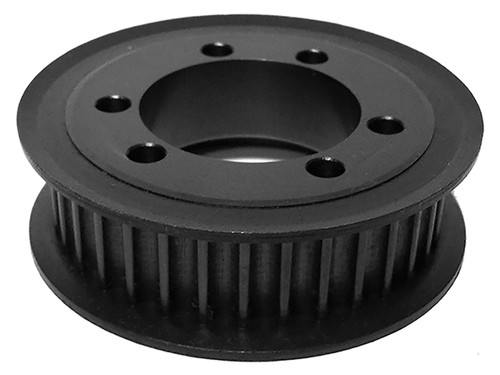

QD72-8M-20, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD72-8M-20 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD72-8M-20
Teeth 72
Tooth Style HTD 8mm
For Belt Width (mm) 20
Type C2F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SDS
Pitch Diameter (in) 7.218
Outside Diameter (in) 7.164
Flange Diameter (in) 7.598
Face Width (in) 1.125
Overall Length (in) 1.125
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.875
Unit System Inch
Bushing SDS
MOQ 1
Weight (lb) 8.06
Part Number Cross Reference 8M72QD20.SDS, P72-8M-20-SDS, 20182460, 110714, P728M20, P72-8M-20
