QD72-8M-50, Timing Pulley

QD72-8M-50 - Cast Iron Powerhouse®HTD® Pulleys

QD72-8M-50

Click to Enlarge

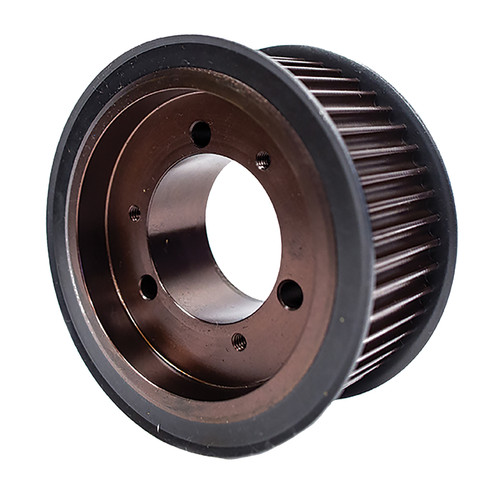

QD72-8M-50, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD72-8M-50 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD72-8M-50
Teeth 72
Tooth Style HTD8mm
For Belt Width (mm) 50.00
Type D1F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for SK Bushing
Pitch Diameter (in) 7.218
Outside Diameter (in) 7.166
Flange Diameter (in) 7.598
Face Width (in) 2.375
Overall Length (in) 2.375
Min. Bore (in) 0.5
Pulley Belt Width (in) 2.125
Unit System Metric
Bushing SK
P.D. (mm) 183.00
O.D. (mm) 182.00
MOQ 1
Weight (lb) 15.00
Part Number Cross Reference P728M50-SK, 8M72QD50.SK, B728M50SK, P72-8M-50-SK, 20182462, P72-8M-50-SK HTD SPKT, P728M50, P72-8M-50-SK, P72-8M-50-SK, P72-8M-50, P728M50SK, 3PEF1, P72-8M-50-SK, QD72-8M-50, 110751, QD72-8M-50

Comparable to: P728M50-SK, 8M72QD50.SK, B728M50SK, P72-8M-50-SK, 20182462, P72-8M-50-SK HTD SPKT, P728M50, P72-8M-50-SK, P72-8M-50-SK, P72-8M-50, P728M50SK, 3PEF1, P72-8M-50-SK, QD72-8M-50, 110751, QD72-8M-50

Documentation

Download Catalog
General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Keyway Standards and Tolerances
Drive Alignment Guide
For custom parts click here
REACH Certification
RoHS Certification
