QD80-14M-170, Timing Pulley

QD80-14M-170

Click to Enlarge

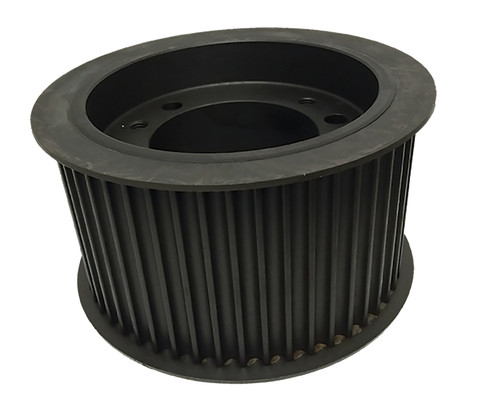

QD80-14M-170, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD80-14M-170 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	QD80-14M-170
Teeth	80
Tooth Style	HTD14mm
For Belt Width (mm)	170.00
Type	A2F
Material	Cast Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for J Bushing
Pitch Diameter (in)	14.036
Outside Diameter (in)	13.926
Flange Diameter (in)	14.630
Face Width (in)	7.375
Overall Length (in)	7.375
Min. Bore (in)	1.5
Unit System	Metric
Bushing	J
P.D. (mm)	356.00
O.D. (mm)	353.70
MOQ	1
Weight (lb)	117.00
Part Number Cross Reference	14M80QD170.J, P80-14M-170-J, 20182466, P80-14M-170-J HTD SPKT, P8014M170, P80-14M-170-J, P80-14M-170-J, P80-14M-170, P80-14M-170-J, QD80-14M-170, 110890, QD80-14M-170
