QD80-14M-85, Timing Pulley

QD80-14M-85

Click to Enlarge

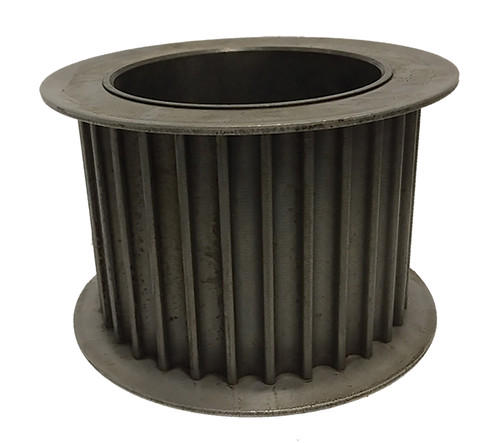

QD80-14M-85, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD80-14M-85 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	QD80-14M-85
Teeth	80
Tooth Style	HTD14mm
For Belt Width (mm)	85.00
Type	D2F
Material	Cast Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for F Bushing
Pitch Diameter (in)	14.036
Outside Diameter (in)	13.926
Flange Diameter (in)	14.630
Face Width (in)	4.000
Overall Length (in)	4.000
Min. Bore (in)	1
Unit System	Metric
Bushing	F
P.D. (mm)	356.00
O.D. (mm)	353.70
MOQ	1
Weight (lb)	66.00
Part Number Cross Reference	14M80QD85.F, P80-14M-85-F, 20182469, P80-14M-85-F HTD SPKT, P8014M85, P80-14M-85-F, P80-14M-85-F, P80-14M-85, P80-14M-85-F, QD80-14M-85, 110845, QD80-14M-85
