QD90-8M-20, Timing Pulley

QD90-8M-20

Click to Enlarge

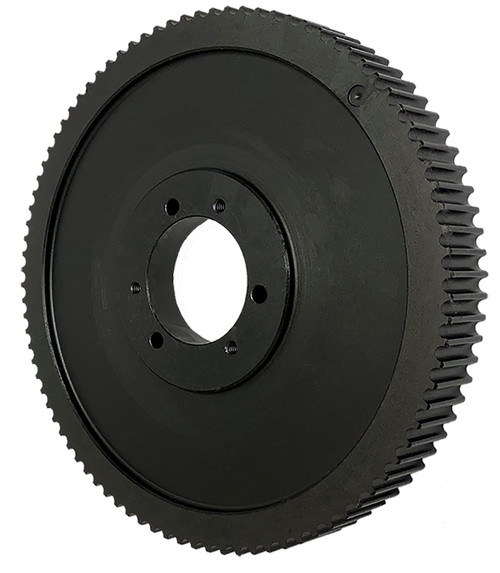

QD90-8M-20, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD90-8M-20 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	QD90-8M-20
Teeth	90
Tooth Style	HTD8mm
For Belt Width (mm)	20.00
Type	D-2
Material	Cast Iron
Finish	Black Oxide
Bore Type	QD
Bore Description	Bored for SDS Bushing
Pitch Diameter (in)	9.023
Outside Diameter (in)	8.971
Face Width (in)	1.125
Overall Length (in)	1.125
Min. Bore (in)	0.5
Pulley Belt Width (in)	0.875
Unit System	Metric
Bushing	SDS
P.D. (mm)	229.00
O.D. (mm)	227.90
MOQ	1
Weight (lb)	10.23
Part Number Cross Reference	P908M20-SDS, 8M90QD20.SDS, B908M20SDS, P90-8M-20-SDS, 20182494, P90-8M-20-SDS HTD SPKT, P908M20, P90-8M-20-SDS, P90-8M-20-SDS, P90-8M-20, P908M20SDS, P90-8M-20-SDS, QD90-8M-20, 110716, QD90-8M-20
