SS3224 Gears

SS3224, S1268Z-032S024

Product Details for SS3224

Comparable to: SS3224, S1268Z-032S024

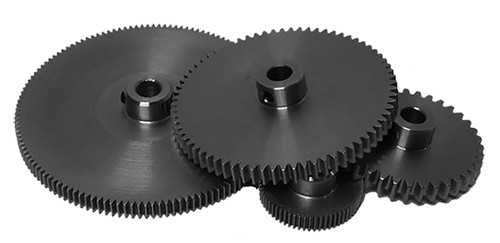

SS3224, Spur Gear, 1/4 Inch Bore, Stainless Steel

Specifications

Product Number SS3224
Teeth 24
Type 6
Material Stainless Steel
Bore Type Minimum Plain Bore
Bore (in) 1/4 Inch Minimum Plain Bore
Pitch Diameter (in) 0.750
Outside Diameter (in) 0.813
Face Width (in) 0.188
Overall Length (in) 0.437
Hub Diameter (in) 0.500
Unit System Inch
Part Number Cross Reference SS3224, S1268Z-032S024
Pressure Angle 20.0
Diametral Pitch 32
