TL18L050-1008 Imperial Pitch Pulleys

TL18L050-1008, TL18L050 1008, 20182508

Product Details for TL18L050-1008

Comparable to: TL18L050-1008, TL18L050 1008, 20182508

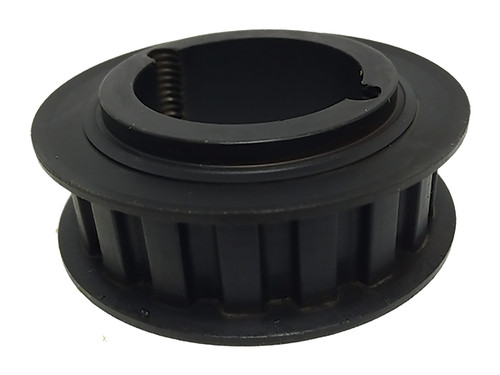

TL18L050-1008, Timing Pulley, Powerhouse Timing, 1008 Bushing, Steel

Specifications

Product Number TL18L050-1008
Teeth 18
Tooth Style L
For Belt Width (in) 0.500
Type 8F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1008
Pitch Diameter (in) 2.149
Outside Diameter (in) 2.119
Flange Diameter (in) 2.375
Face Width (in) 0.750
Overall Length (in) 0.875
Pulley Belt Width (in) 0.570
Unit System Inch
Bushing 1008
Weight (lb) 0.44
List Price (1-9 Qty.) (USD) 22.67
Discount Price (10-24 Qty.) (USD) 21.53
Discount Price (25-49 Qty.) (USD) 19.27
Part Number Cross Reference TL18L050-1008, TL18L050 1008, 20182508
