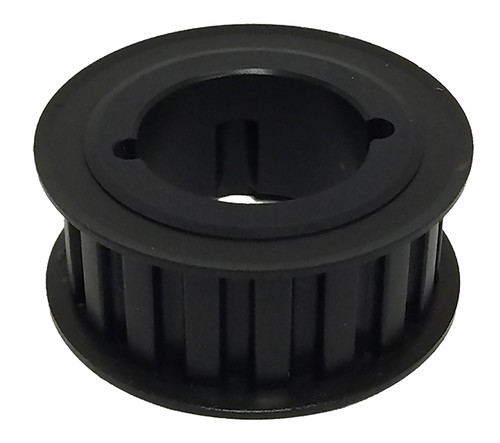

TL18L075-1108 Imperial Pitch Pulleys

TL18L075-1108, TL18L075, 78817002, 113589, P18L075-11

Product Details for TL18L075-1108

Comparable to: TL18L075-1108, TL18L075, 78817002, 113589, P18L075-11

TL18L075-1108, Timing Pulley, Powerhouse Timing, 1108 Bushing, Steel

Specifications

Product Number TL18L075-1108
Teeth 18
Tooth Style L
For Belt Width (in) 0.750
Type 3F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1108
Pitch Diameter (in) 2.149
Outside Diameter (in) 2.119
Flange Diameter (in) 2.375
Face Width (in) 1.000
Overall Length (in) 1.000
Pulley Belt Width (in) 0.820
Unit System Inch
Bushing 1108
Weight (lb) 0.50
Part Number Cross Reference TL18L075-1108, TL18L075, 78817002, 113589, P18L075-11

Documentation

Download Catalog 2015_BBMAN_CATALOG_41.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Keyway Standards and Tolerances keyway_specs.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification TL18L075-1108_REACH_cert
RoHS Certification TL18L075-1108_RoHS_cert
