TL20L075-1008, Timing Pulley

TL20L075-1008

Click to Enlarge

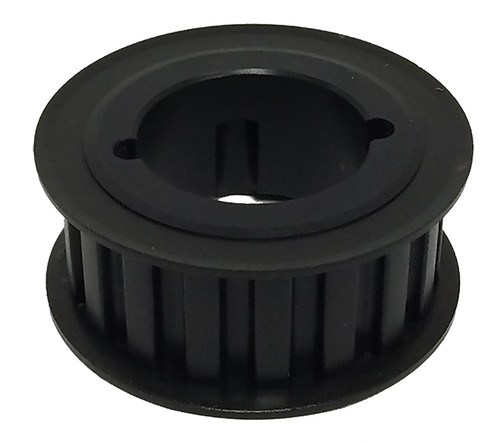

TL20L075-1008, Timing Pulley, Steel, Black Oxide,

Learn more about TL20L075-1008 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	TL20L075-1008
Teeth	20
Tooth Style	L
For Belt Width (in)	0.7500
Type	3F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 1008 Bushing
Pitch Diameter (in)	2.387
Outside Diameter (in)	2.357
Flange Diameter (in)	2.625
Face Width (in)	1.000
Overall Length (in)	1.000
Min. Bore (in)	0.5
Pulley Belt Width (in)	0.820
Unit System	Inch
Bushing	1008
P.D. (mm)	61.00
O.D. (mm)	59.90
MOQ	1
Weight (lb)	0.80
Part Number Cross Reference	TL20L075, TL-20L075-1008, TB20L075, TL20L075 1008, 20182516, TL20L075-1008, TL20L075 1008, TL20L075, TL20L075, TL20L075-1008, TL20L075-1008
