TL22L050-1108, Timing Pulley

TL22L050-1108 - Steel Imperial Pitch Pulleys

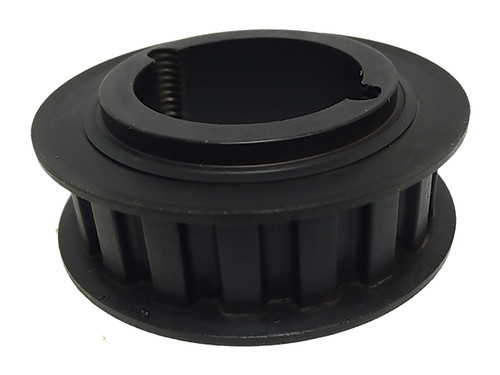

TL22L050-1108

Click to Enlarge

TL22L050-1108, Timing Pulley, Steel, Black Oxide,

Learn more about TL22L050-1108 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number TL22L050-1108
Teeth 22
Tooth Style L
For Belt Width (in) 0.5000
Type 8F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 1108 Bushing
Pitch Diameter (in) 2.626
Outside Diameter (in) 2.596
Flange Diameter (in) 2.875
Face Width (in) 0.750
Overall Length (in) 0.875
Min. Bore (in) 0.5
Pulley Belt Width (in) 0.570
Unit System Inch
Bushing 1108
P.D. (mm) 67.00
O.D. (mm) 65.90
MOQ 1
Weight (lb) 0.82
Part Number Cross Reference TL22L050, 22 L 050 TL.1108, TL22L050-1108 DYNA-SYNC SPKT, TL22L050, TB 22-L-050, P22L050-1108, TL22L050-1108, 113588, TL22L050-1108

Comparable to: TL22L050, 22 L 050 TL.1108, TL22L050-1108 DYNA-SYNC SPKT, TL22L050, TB 22-L-050, P22L050-1108, TL22L050-1108, 113588, TL22L050-1108
