TL28H300 Imperial Pitch Pulleys

TL28H300, 78817052, TL28H300 2012, 20182542, 113764, P28H300-2012

Product Details for TL28H300

Comparable to: TL28H300, 78817052, TL28H300 2012, 20182542, 113764, P28H300-2012

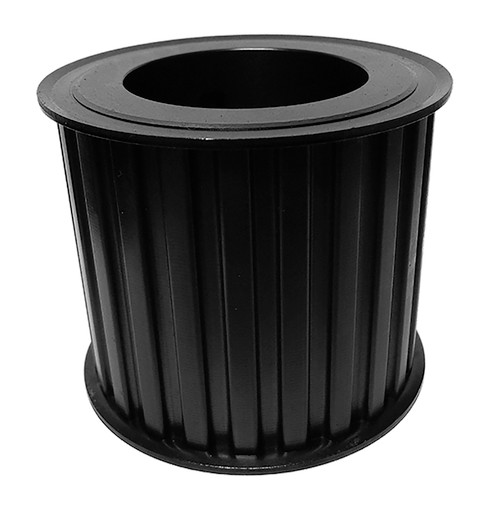

TL28H300, Timing Pulley, Powerhouse Timing, 2012 Bushing, Cast Iron

Specifications

Product Number TL28H300
Teeth 28
Tooth Style H
For Belt Width (in) 3.000
Type 2F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 2012
Pitch Diameter (in) 4.456
Outside Diameter (in) 4.402
Flange Diameter (in) 4.687
Face Width (in) 3.375
Overall Length (in) 3.375
Pulley Belt Width (in) 3.125
Unit System Inch
Bushing 2012
Weight (lb) 6.80
List Price (1-9 Qty.) (USD) 112.56
Discount Price (10-24 Qty.) (USD) 104.12
Discount Price (25-49 Qty.) (USD) 93.7
Part Number Cross Reference TL28H300, 78817052, TL28H300 2012, 20182542, 113764, P28H300-2012

Documentation

Download Catalog 2015_BBMAN_CATALOG_64.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Keyway Standards and Tolerances keyway_specs.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification TL28H300_REACH_cert
RoHS Certification TL28H300_RoHS_cert
