TL28L075, Timing Pulley

TL28L075 - Steel Imperial Pitch Pulleys

TL28L075

Click to Enlarge

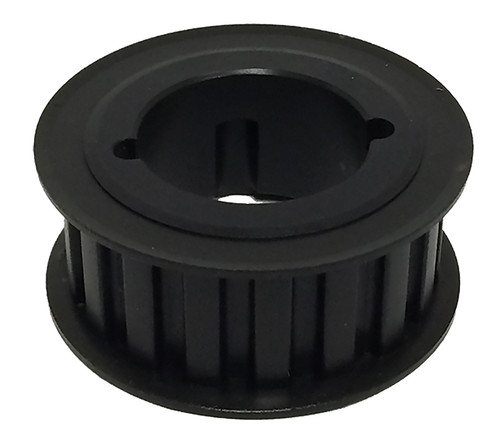

TL28L075, Timing Pulley, Steel, Black Oxide,

Learn more about TL28L075 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number TL28L075
Teeth 28
Tooth Style L
For Belt Width (in) 0.7500
Type 3F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1610
Pitch Diameter (in) 3.342
Outside Diameter (in) 3.312
Flange Diameter (in) 3.566
Face Width (in) 1.000
Overall Length (in) 1.000
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.820
Unit System Inch
Bushing 1610
P.D. (mm) 85.00
O.D. (mm) 84.10
MOQ 1
Weight (lb) 1.36
Part Number Cross Reference TL28L075, TB28L075, 28 L 075 TL, TL28L075 1610, 20182544, 113517, TL28L075 1610, TL28L075, TB 28-L-075, P28L075-1610, TL28L075

Comparable to: TL28L075, TB28L075, 28 L 075 TL, TL28L075 1610, 20182544, 113517, TL28L075 1610, TL28L075, TB 28-L-075, P28L075-1610, TL28L075
